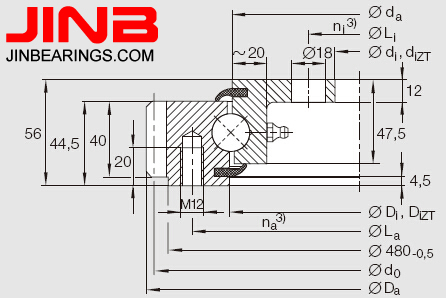

VLA201094N slewing ring bearing VE.20.1094 G1
| Slewing bearing No. | VLA 20 1094 N | |
| Weight | [kg] | 83.5 |
| Outer diameter (O.D.) | [mm] | 1198.1 |
| Inner diameter (I.D.) | [mm] | 984 |
| Bore diameter of outer ring | [mm] | 1095.5 |
| Outside diameter of inner ring | [mm] | 1092.5 |
| Overall height | [mm] | 56 |
| External bolt circle diameter | [mm] | 1135 |
| Number of bolt hles | 22 | |
| Internal bolt circle diameter | [mm] | 1012 |
| Number of bolt hles | 20 | |
| Bolt hole diameter | [mm] | 18 |
| Bolt size | [mm] | M12 |
| Height of outer ring | [mm] | 44.5 |
| Height of inner ring | [mm] | 47.5 |
| Gear P.C.D. | [mm] | 1184 |
| Module | [mm] | 8 |
| Number of Teeth | 148 | |
| Height of flange ring | [mm] | 12 |
| JINB slewing bearing | VE.20.1094 G1 | |
