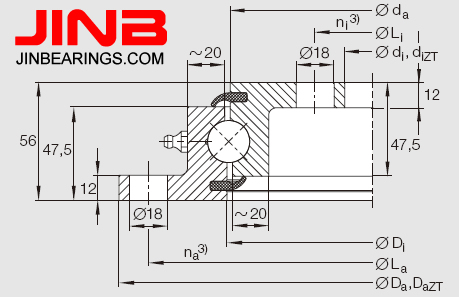

VLU200644 slewing ring bearing VU.20.0644 JINB
| Slewing bearing No. | VLU 20 0644 | |
| Weight | [kg] | 36.5 |
| Outer diameter (O.D.) | [mm] | 748 |
| Inner diameter (I.D.) | [mm] | 534 |
| Bore diameter of outer ring | [mm] | 645.5 |
| Outside diameter of inner ring | [mm] | 642.5 |
| Overall height | [mm] | 56 |
| External bolt circle diameter | [mm] | 720 |
| Number of bolt hles | 12 | |
| Internal bolt circle diameter | [mm] | 562 |
| Number of bolt hles | 16 | |
| Bolt hole diameter | [mm] | 18 |
| Bolt size | [mm] | 18 |
| Height of outer ring | [mm] | 47.5 |
| Height of inner ring | [mm] | 44.5 |
| Gear P.C.D. | [mm] | / |
| Module | [mm] | / |
| Number of Teeth | / | |
| Height of flange ring | [mm] | 12 |
| JINB slewing bearing | VU.20.0644 | |
