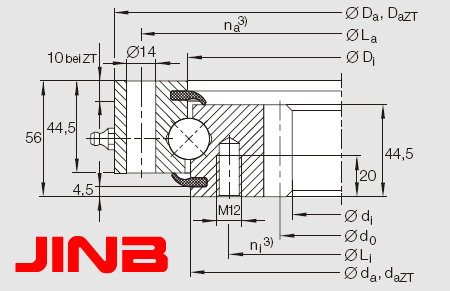

VSI201094N slewing ring bearing SI.6.20.1094 G1 JINB
| Slewing bearing No. | VSI 20 1094 N | |
| Weight | [kg] | 91 |
| Outer diameter (O.D.) | [mm] | 1166 |
| Inner diameter (I.D.) | [mm] | 984 |
| Bore diameter of outer ring | [mm] | 1095.5 |
| Outside diameter of inner ring | [mm] | 1092.5 |
| Overall height | [mm] | 56 |
| External bolt circle diameter | [mm] | 1140 |
| Number of bolt hles | 48 | |
| Internal bolt circle diameter | [mm] | 1055 |
| Number of bolt hles | 48 | |
| Bolt hole diameter | [mm] | 14 |
| Bolt size | [mm] | M12 |
| Height of outer ring | [mm] | 44.5 |
| Height of inner ring | [mm] | 44.5 |
| Gear P.C.D. | [mm] | 1000 |
| Module | [mm] | 8 |
| Number of Teeth | 125 | |
| JINB slewing bearing | SI.6.20.1094 G1 | |
