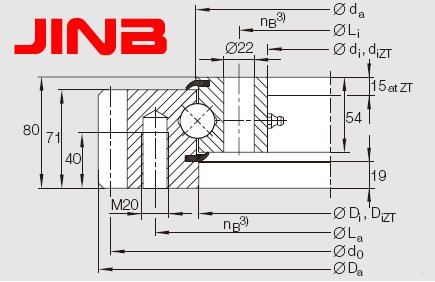

VSA250955N slewing ring bearing SE.6.25.0955 G1 JINB
| Slewing bearing No. | VSA250955N | |
| Weight | [kg] | 155 |
| Outer diameter (O.D.) | [mm] | 1096 |
| Inner diameter (I.D.) | [mm] | 855 |
| Bore diameter of outer ring | [mm] | 953 |
| Outside diameter of inner ring | [mm] | 957 |
| Overall height | [mm] | 80 |
| External bolt circle diameter | [mm] | 1016 |
| Number of bolt hles | 30 | |
| Internal bolt circle diameter | [mm] | 895 |
| Number of bolt hles | 30 | |
| Bolt hole diameter | [mm] | 22 |
| Bolt size | [mm] | M20 |
| Height of outer ring | [mm] | 71 |
| Height of inner ring | [mm] | 54 |
| Gear P.C.D. | [mm] | 1080 |
| Module | [mm] | 9 |
| Number of Teeth | 120 | |
| JINB slewing bearing | SE.6.25.0955 G1 | |
