VA160235N small slewing ring bearing thin-wall slewing bearings

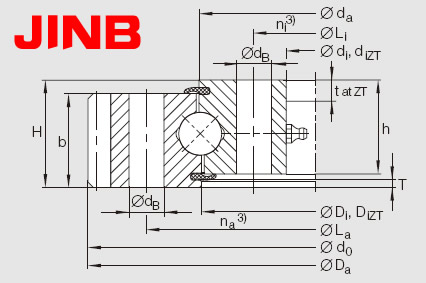

| Slewing bearing No. | VA160235N | |
| Weight | [kg] | 13 |
| Outer diameter (O.D.) | [mm] | 318.6 |
| Inner diameter (I.D.) | [mm] | 171 |
| Bore diameter of outer ring | [mm] | 234 |
| Outside diameter of inner ring | [mm] | 236 |
| Overall height | [mm] | 40 |
| External bolt circle diameter | [mm] | 275 |
| Number of bolt hles | 12 | |
| Internal bolt circle diameter | [mm] | 195 |
| Number of bolt hles | 12 | |
| Bolt hole diameter | [mm] | 13 |
| Bolt size | [mm] | 13 |
| Height of outer ring | [mm] | 35 |
| Height of inner ring | [mm] | 35 |
| Gear P.C.D. | [mm] | 312 |
| Module | [mm] | 4 |
| Number of Teeth | 78 | |
| tooth width | [mm] | 35 |
| JINB slewing bearing | SEL160235G1 | |
