VA250309N small slewing ring bearing thin-wall slewing bearings

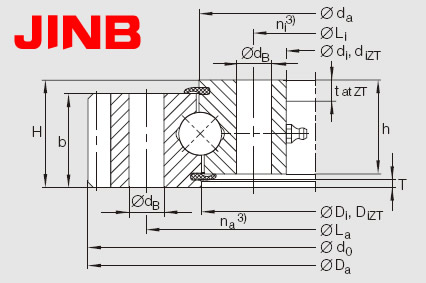

| Slewing bearing No. | VA250309N | |
| Weight | [kg] | 29.5 |
| Outer diameter (O.D.) | [mm] | 408.4 |
| Inner diameter (I.D.) | [mm] | 235 |
| Bore diameter of outer ring | [mm] | 308 |
| Outside diameter of inner ring | [mm] | 310 |
| Overall height | [mm] | 60 |
| External bolt circle diameter | [mm] | 359 |
| Number of bolt hles | 24 | |
| Internal bolt circle diameter | [mm] | 259 |
| Number of bolt hles | 24 | |
| Bolt hole diameter | [mm] | 13 |
| Bolt size | [mm] | 13 |
| Height of outer ring | [mm] | 52.5 |
| Height of inner ring | [mm] | 52.5 |
| Gear P.C.D. | [mm] | 400 |
| Module | [mm] | 5 |
| Number of Teeth | 80 | |
| tooth width | [mm] | 52.5 |
| JINB slewing bearing | SEL250309G1 | |
