VI160420N small slewing ring bearing thin-wall slewing bearings

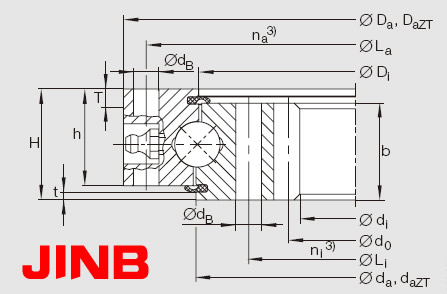

| Slewing bearing No. | VI160420N | |
| Weight | [kg] | 23 |
| Outer diameter (O.D.) | [mm] | 486 |
| Inner diameter (I.D.) | [mm] | 332 |
| Bore diameter of outer ring | [mm] | 419 |
| Outside diameter of inner ring | [mm] | 421 |
| Overall height | [mm] | 39 |
| External bolt circle diameter | [mm] | 462 |
| Number of bolt hles | 16 | |
| Internal bolt circle diameter | [mm] | 378 |
| Number of bolt hles | 16 | |
| Bolt hole diameter | [mm] | 14 |
| Bolt size | [mm] | 14 |
| Height of outer ring | [mm] | 34 |
| Height of inner ring | [mm] | 34 |
| Gear P.C.D. | [mm] | 340 |
| Module | [mm] | 4 |
| Number of Teeth | 85 | |
| tooth width | [mm] | 34 |
| JINB slewing bearing | SIL160420V | |
