VU300574 small slewing ring bearing thin-wall slewing bearings without gear

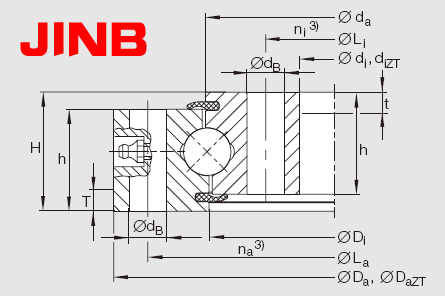

| Slewing bearing No. | VU300574 | |
| Weight | [kg] | 82 |
| Outer diameter (O.D.) | [mm] | 680 |
| Inner diameter (I.D.) | [mm] | 468 |
| Bore diameter of outer ring | [mm] | 572 |
| Outside diameter of inner ring | [mm] | 576 |
| Overall height | [mm] | 68 |
| External bolt circle diameter | [mm] | 640 |
| Number of bolt hles | 20 | |
| Internal bolt circle diameter | [mm] | 508 |
| Number of bolt hles | 20 | |
| Bolt hole diameter | [mm] | 22 |
| Bolt size | [mm] | 22 |
| Height of outer ring | [mm] | 61 |
| Height of inner ring | [mm] | 61 |
| Gear P.C.D. | [mm] | / |
| Module | [mm] | / |
| Number of Teeth | / | |
| tooth width | [mm] | / |
| JINB slewing bearing | SUL300574 | |
