DOUBLE ROW BALL SLEWING BEARINGS

External teeth Internal teeth Without teeth

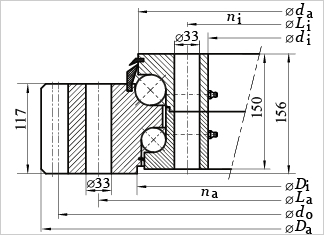

SE140 SE150   SI140 SI150
SE.1.40.0000 G3 SERIES
1. Double-row designs, Ball diameters 12 to 70 mm.
2. Four-point raceway geometry.
3. Optional preloaded raceway system and centerings.
4. Enables robust designs for arduous application conditions.
5. High resistance to 'false brinelling' in heavy vibration conditions.
6. Reduced sensitivity to shape deformations in the mounting structure.
7. Higher static load capacity than similar design Crossed Roller Slewing Rings.
8. Often designed as special versions according to customers’ requirements.
9. Frequently used in wind energy turbines, cranes,construction machinery, mechanical engineering and special purpose machinery.
JINB
Bearing Number
Main Dimensions
Fixing holes
Gear teeth
Tooth force
Basic load ratings
Mass
Static
Dynamic
Da
di
Di
da
La
na
Li
ni
do
m
z
Fz norm
Fz max

Cor
Coa

Cr
Ca
G
[mm]
[mm]
[mm]
[mm]
[mm]
[ - ]
[mm]
[ - ]
[mm]
[mm]
[ - ]
[kN]
[kN]
[kN]
[kN]
[kN]
[kN]
[kg]
SE.1.40.2240 G3 2525 2090 2275 2272 2375 48 2145 48 2480 16 155 176 307 2102 9606 536 1136 1316
SE.1.40.2619 G3 2912 2465 2654 2651 2755 52 2520 52 2862 18 159 205 357 2459 11234 568 1204 1615
SE.1.40.2795 G3 3096 2645 2830 2827 2930 54 2700 54 3040 20 152 233 408 2625 11990 580 1233 1723
SE.1.40.2915 G3 3216 2765 2950 2947 3050 60 2820 60 3160 20 158 233 408 2738 12505 590 1254 1790
SE.1.40.3150 G3 3456 3000 3185 3182 3285 60 3065 60 3400 20 170 233 408 2959 13515 607 1288 1969
81-40 2240/2-07600
81-40 2619/2-07605
81-40 2795/2-07610
81-40 2915/2-07615
81-40 3150/2-07620
011.40.2240.000.11.1502
011.40.2619.000.11.1502
011.40.2795.001.41.1502
011.40.2915.000.11.1502
011.40.3150.000.11.1502
