CROSSED ROLLER SLEWING BEARINGS

External teeth Internal teeth Without teeth

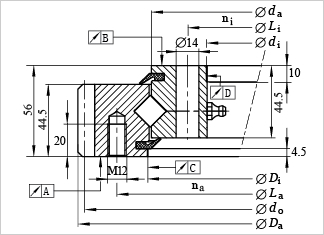

XE614     XI614     XU614
XE.6.14.0000 G1 SERIES
1. Single-row roller raceway under 45 degrees.
2. Roller diameters 12 to 60 mm.
3. Alternately arranged rolling elements.
4. Constant friction torque with different loads.
5. Higher dynamic service life than similar Ball Slewing Ring designs.
6. Higher demands on the rigidity and precision of the mounting structure in comparison with Ball Slewing Rings.
7. Applications: Robots, antennas, medical technology, positioning devices, machine tools.
8. Can be supplied to special customers' requirements.
JINB
Bearing Number
Main Dimensions
Fixing holes
Gear teeth
Tooth force
Basic load ratings
Mass
Static
Dynamic
Da
di
Di
da
La
na
Li
ni
do
m
z
Fz norm
Fz max

Cor
Coa

Cr
Ca
G
[mm]
[mm]
[mm]
[mm]
[mm]
[ - ]
[mm]
[ - ]
[mm]
[mm]
[ - ]
[kN]
[kN]
[kN]
[kN]
[kN]
[kN]
[kg]
XE.6.14.0414 G1 503.3 344 417 413 455 20 268 24 495 5 99 15.9 23.6 250 520 146 229 32
XE.6.14.0544 G1 640.3 474 547 543 585 28 498 32 630 6 105 21.3 31.5 330 680 170 270 44
XE.6.14.0644 G1 742.3 574 647 643 685 32 598 36 732 6 122 21.3 31.5 395 800 185 290 52
XE.6.14.0744 G1 838.1 674 747 743 785 36 698 40 828 6 138 21.3 31.5 455 930 200 315 59
XE.6.14.0844 G1 950.1 774 847 843 885 36 798 40 936 8 117 28.3 42 510 1050 215 340 71
XE.6.14.0944 G1 1046 874 947 943 985 40 898 44 1032 8 129 28.3 42 580 1170 227 360 77
XE.6.14.1094 G1 1198 1024 1097 1093 1135 44 1048 48 1184 8 148 28.3 42 670 1360 246 390 91
XSA 14 0414 N
XSA 14 0544 N
XSA 14 0644 N
XSA 14 0744 N
XSA 14 0844 N
XSA 14 0944 N
XSA 14 1094 N
