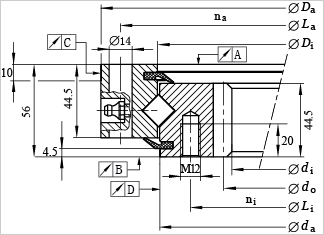

CROSSED ROLLER SLEWING BEARINGS

External teeth Internal teeth Without teeth
XE614     XI614     XU614
XI.6.14.0000 G1 SERIES
1. Single-row roller raceway under 45 degrees.
2. Roller diameters 12 to 60 mm.
3. Alternately arranged rolling elements.
4. Constant friction torque with different loads.
5. Higher dynamic service life than similar Ball Slewing Ring designs.
6. Higher demands on the rigidity and precision of the mounting structure in comparison with Ball Slewing Rings.
7. Applications: Robots, antennas, medical technology, positioning devices, machine tools.
8. Can be supplied to special customers' requirements.
JINB
Bearing Number
Main Dimensions
Fixing holes
Gear teeth
Tooth force
Basic load ratings
Mass
Static
Dynamic
Da
di
Di
da
La
na
Li
ni
do
m
z
Fz norm
Fz max

Cor
Coa

Cr
Ca
G
[mm]
[mm]
[mm]
[mm]
[mm]
[ - ]
[mm]
[ - ]
[mm]
[mm]
[ - ]
[kN]
[kN]
[kN]
[kN]
[kN]
[kN]
[kg]
XI.6.14.0414 G1 484 325 415 411 460 24 375 24 335 5 67 17.7 26.2 250 520 146 229 31
XI.6.14.0544 G1 614 444 545 541 590 32 505 32 456 6 76 23.7 35 330 680 170 270 43
XI.6.14.0644 G1 714 546 645 641 690 36 605 36 558 6 93 23.7 35 395 800 185 290 50
XI.6.14.0744 G1 814 648 745 741 790 40 705 40 660 6 110 23.7 35 455 930 200 315 58
XI.6.14.0844 G1 914 736 845 841 890 40 805 40 752 8 94 31.4 46.7 510 1050 215 340 69
XI.6.14.0944 G1 1014 840 945 941 990 44 905 44 856 8 107 31.4 46.7 580 1170 227 360 76
XI.6.14.1094 G1 1164 984 1095 1091 1140 48 1055 48 1000 8 125 31.4 46.7 670 1360 246 390 91
XSI 14 0414 N
XSI 14 0544 N
XSI 14 0644 N
XSI 14 0744 N
XSI 14 0844 N
XSI 14 0944 N
XSI 14 1094 N
