| CROSSED ROLLER SLEWING BEARINGS |
|
| |
|
| XU.6.14.0000 SERIES |
 |
1. Single-row roller raceway under 45 degrees.
2. Roller diameters 12 to 60 mm.
3. Alternately arranged rolling elements.
4. Constant friction torque with different loads.
5. Higher dynamic service life than similar Ball Slewing Ring designs.
6. Higher demands on the rigidity and precision of the mounting structure in comparison with Ball Slewing Rings.
7. Applications: Robots, antennas, medical technology, positioning devices, machine tools.
8. Can be supplied to special customers' requirements. |
 |

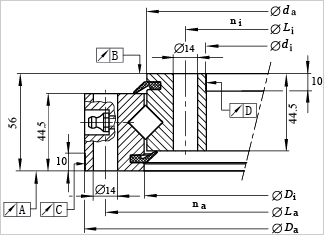

JINB
Bearing Number |
Main Dimensions |
Fixing holes |
Basic load ratings |
Mass |
Static |
Dynamic |
Da |
di |
Di |
da |
La |
na |
Li |
ni |
Cor |
Coa |
Cr |
Ca |
G |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[ - ] |
[mm] |
[ - ] |
[kN] |
[kN] |
[kN] |
[kN] |
[kg] |
| XU.6.14.0414 |
484 |
344 |
415 |
413 |
460 |
24 |
368 |
24 |
250 |
520 |
146 |
229 |
28 |
| XU.6.14.0544 |
614 |
474 |
545 |
543 |
590 |
32 |
498 |
32 |
330 |
680 |
170 |
270 |
38 |
| XU.6.14.0644 |
714 |
574 |
645 |
643 |
690 |
36 |
598 |
36 |
395 |
800 |
185 |
290 |
44 |
| XU.6.14.0744 |
814 |
674 |
745 |
743 |
790 |
40 |
698 |
40 |
455 |
930 |
200 |
315 |
52 |
| XU.6.14.0844 |
914 |
774 |
845 |
843 |
890 |
40 |
798 |
40 |
510 |
1050 |
215 |
340 |
60 |
| XU.6.14.0944 |
1014 |
874 |
945 |
943 |
990 |
44 |
898 |
44 |
580 |
1170 |
227 |
360 |
67 |
| XU.6.14.1094 |
1164 |
1024 |
1095 |
1093 |
1140 |
48 |
1047 |
48 |
670 |
1360 |
246 |
390 |
77 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
XSU 14 0414
XSU 14 0544
XSU 14 0644
XSU 14 0744
XSU 14 0844
XSU 14 0944
XSU 14 1094
|
|
|
|
|
|
|
|
