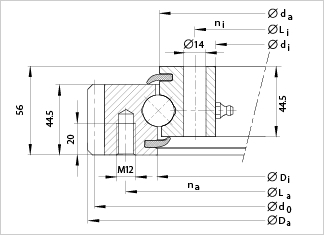

| SINGLE ROW BALL SLEWING BEARINGS |
|
| |
|
| SE.6.20.0000 G1 SERIES |
 |
1. Single-row designs, Ball diameters 12 to 70 mm.
2. Four-point raceway geometry.
3. Optional preloaded raceway system and centerings.
4. Enables robust designs for arduous application conditions.
5. High resistance to 'false brinelling' in heavy vibration conditions.
6. Reduced sensitivity to shape deformations in the mounting structure.
7. Higher static load capacity than similar design Crossed Roller Slewing Rings.
8. Often designed as special versions according to customers’ requirements.
9. Frequently used in wind energy turbines, cranes,construction machinery, mechanical engineering and special purpose machinery. |
 |
JINB
Bearing Number |
Main Dimensions |
Fixing holes |
Gear teeth |
Tooth force |
Basic load ratings |
Mass |
Static |
Dynamic |
Da |
di |
Di |
da |
La |
na |
Li |
ni |
do |
m |
z |
Fz norm |
Fz max |
Cor |
Coa |
Cr |
Ca |
G |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[ - ] |
[mm] |
[ - ] |
[mm] |
[mm] |
[ - ] |
[kN] |
[kN] |
[kN] |
[kN] |
[kN] |
[kN] |
[kg] |
| SE.6.20.0311 G1 |
404 |
242 |
315.5 |
312.5 |
355 |
20 |
268 |
20 |
395 |
5 |
79 |
15.9 |
23.6 |
192 |
448 |
140 |
140 |
23 |
| SE.6.20.0414 G1 |
503.3 |
342 |
415.5 |
412.5 |
455 |
20 |
368 |
24 |
495 |
5 |
99 |
15.9 |
23.6 |
248 |
560 |
111 |
169 |
31 |
| SE.6.20.0544 G1 |
640.3 |
472 |
545.5 |
542.5 |
585 |
28 |
498 |
32 |
630 |
6 |
105 |
21.3 |
31.5 |
325 |
740 |
123 |
188 |
43 |
| SE.6.20.0644 G1 |
742.3 |
572 |
645.5 |
642.5 |
685 |
32 |
598 |
36 |
732 |
6 |
122 |
21.3 |
31.5 |
385 |
880 |
131 |
200 |
52 |
| SE.6.20.0744 G1 |
838.1 |
672 |
745.5 |
742.5 |
785 |
36 |
698 |
40 |
828 |
6 |
138 |
21.3 |
31.5 |
445 |
1010 |
138 |
211 |
59 |
| SE.6.20.0844 G1 |
950.1 |
772 |
845.5 |
842.5 |
885 |
36 |
798 |
40 |
936 |
8 |
117 |
28.3 |
42 |
510 |
1150 |
145 |
222 |
71 |
| SE.6.20.0944 G1 |
1046.1 |
872 |
945.5 |
942.5 |
985 |
40 |
898 |
44 |
1032 |
8 |
129 |
28.3 |
42 |
570 |
1280 |
151 |
231 |
77 |
| SE.6.20.1094 G1 |
1198.1 |
1022 |
1095.5 |
1092.5 |
1135 |
44 |
1048 |
48 |
1184 |
8 |
148 |
28.3 |
42 |
660 |
1490 |
160 |
244 |
91 |
|
VSA 20 0414 N
VSA 20 0544 N
VSA 20 0644 N
VSA 20 0744 N
VSA 20 0844 N
VSA 20 0944 N
VSA 20 1094 N
|
11-20 0311/1-02102
11-20 0411/1-02112
11-20 0541/1-02122
11-20 0641/1-02132
11-20 0741/1-02142
11-20 0841/1-02152
11-20 0941/1-02162
11-20 1091/1-02172
|
061.20.0414.500.01.1503
061.20.0544.500.01.1503
061.20.0644.500.01.1503
061.20.0744.500.01.1503
061.20.0844.500.01.1503
061.20.0944.500.01.1503
061.20.1094.500.01.1503 |
