BALL SLEWING RING WITH FLANGE RINGS

External teeth Internal teeth Without teeth
SE620 SE625 SE650 SI620 SI625 SI650 SU620 SU625

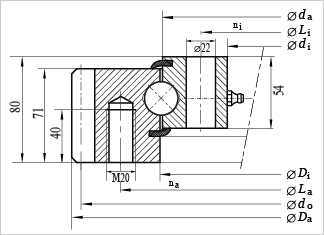

SE.6.25.0000 G1 SERIES SE625 slewing bearing
1. Single-row designs, Ball diameters 12 to 70 mm.
2. Four-point raceway geometry.
3. Optional preloaded raceway system and centerings.
4. Enables robust designs for arduous application conditions.
5. High resistance to 'false brinelling' in heavy vibration conditions.
6. Reduced sensitivity to shape deformations in the mounting structure.
7. Higher static load capacity than similar design Crossed Roller Slewing Rings.
8. Often designed as special versions according to customers’ requirements.
9. Frequently used in wind energy turbines, cranes,construction machinery, mechanical engineering and special purpose machinery.
JINB
Bearing Number
Main Dimensions
Fixing holes
Gear teeth
Tooth force
Basic load ratings
Mass
Static
Dynamic
Da
di
Di
da
La
na
Li
ni
do
m
z
Fz norm
Fz max

Cor
Coa

Cr
Ca
G
[mm]
[mm]
[mm]
[mm]
[mm]
[ - ]
[mm]
[ - ]
[mm]
[mm]
[ - ]
[kN]
[kN]
[kN]
[kN]
[kN]
[kN]
[kg]
SE.6.25.0455 G1 590.4 355 457 453 516 18 395 18 576 8 72 28 52 453 1213 249 289 74
SE.6.25.0555 G1 694.4 455 557 553 616 20 495 20 680 8 85 28 52 553 1480 268 311 93
SE.6.25.0655 G1 798.4 555 657 653 716 24 595 24 784 8 98 28 52 653 1746 284 331 111
SE.6.25.0755 G1 898 655 757 753 816 24 695 24 882 9 98 36 65 752 2013 300 349 125
SE.6.25.0855 G1 997 455 857 853 916 28 795 28 981 9 109 36 65 852 2280 316 367 145
SE.6.25.0955 G1 1096 855 957 953 1016 30 895 30 1080 9 120 36 65 952 2546 328 382 155
SE.6.25.1055 G1 1198 955 1057 1053 1116 30 995 30 1180 10 118 43 76 1051 2813 340 396 171
SE.6.25.1155 G1 1298 1055 1157 1153 1216 36 1095 36 1280 10 128 43 76 1151 3080 351 409 186
SE.6.25.1255 G1 1398 1155 1257 1253 1316 42 1195 42 1380 10 138 43 76 1240 3346 364 424 201
SE.6.25.1355 G1 1498 1255 1357 1353 1416 42 1295 42 1480 10 148 43 76 1350 3613 374 435 218
SE.6.25.1455 G1 1598 1355 1457 1453 1516 48 1395 48 1580 10 158 43 76 1450 3879 383 447 233
VSA250755 N
VSA250855 N
VSA250955 N
VSA251055 N
11-25 0455/1-04110
11-25 0555/1-04120
11-25 0655/1-04130
11-25 0755/1-04140		 11-25 0855/1-03110
11-25 0955/1-03120
11-25 1055/1-03130
11-25 1155/1-03140
11-25 1255/1-03150
11-25 1355/1-03160
11-25 1455/1-03170		 061.25.0855.500.11.1503
061.25.0955.500.11.1503
061.25.1055.500.11.1503
061.25.1155.500.11.1503
061.25.1255.500.11.1503
061.25.1355.500.11.1503
061.25.1455.500.11.1503
