BALL SLEWING RING WITH FLANGE RINGS

External teeth Internal teeth Without teeth
SE620 SE625 SE650 SI620 SI625 SI650 SU620 SU625

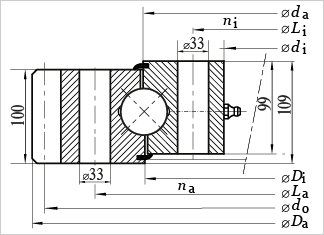

SE.6.50.0000 G3 SERIES SE650 slewing bearing
1. Single-row designs, Ball diameters 12 to 70 mm.
2. Four-point raceway geometry.
3. Optional preloaded raceway system and centerings.
4. Enables robust designs for arduous application conditions.
5. High resistance to 'false brinelling' in heavy vibration conditions.
6. Reduced sensitivity to shape deformations in the mounting structure.
7. Higher static load capacity than similar design Crossed Roller Slewing Rings.
8. Often designed as special versions according to customers’ requirements.
9. Frequently used in wind energy turbines, cranes,construction machinery, mechanical engineering and special purpose machinery.
JINB
Bearing Number
Main Dimensions
Fixing holes
Gear teeth
Tooth force
Basic load ratings
Mass
Static
Dynamic
Da
di
Di
da
La
na
Li
ni
do
m
z
Fz norm
Fz max

Cor
Coa

Cr
Ca
G
[mm]
[mm]
[mm]
[mm]
[mm]
[ - ]
[mm]
[ - ]
[mm]
[mm]
[ - ]
[kN]
[kN]
[kN]
[kN]
[kN]
[kN]
[kg]
SE.6.50.1900 G3 2139.2 1729 1898 1902 2005 36 1795 36 2100 14 150 132 229 3323 8891 1129 1315 820
SE.6.50.2130 G3 2380.8 1959 2128 2132 2235 48 2025 48 2336 16 146 155 273 3725 9968 1177 1371 931
SE.6.50.2355 G3 2604.8 2184 2353 2357 2460 54 2250 64 2560 16 160 155 273 4118 11020 1223 1425 1024
SE.6.50.2645 G3 2892.8 2474 2643 2647 2750 60 2540 60 2848 16 178 155 273 4625 12378 1279 1490 1142
11-50 1900/2-06400
11-50 2130/2-06410
11-50 2355/2-06420
11-50 2645/2-06430
