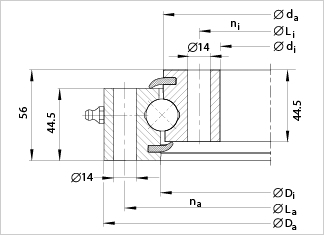

BALL SLEWING RING WITH FLANGE RINGS |
|
|
|
SU.6.20.0000 SERIES |
|
1. Single-row designs, Ball diameters 12 to 70 mm.
2. Four-point raceway geometry.
3. Optional preloaded raceway system and centerings.
4. Enables robust designs for arduous application conditions.
5. High resistance to 'false brinelling' in heavy vibration conditions.
6. Reduced sensitivity to shape deformations in the mounting structure.
7. Higher static load capacity than similar design Crossed Roller Slewing Rings.
8. Often designed as special versions according to customers’ requirements.
9. Frequently used in wind energy turbines, cranes,construction machinery, mechanical engineering and special purpose machinery. |
|
JINB
Bearing Number |
Main Dimensions |
Fixing holes |
Basic load ratings |
Mass |
Static |
Dynamic |
Da |
di |
Di |
da |
La |
na |
Li |
ni |
Cor |
Coa |
Cr |
Ca |
G |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[ - ] |
[mm] |
[ - ] |
[kN] |
[kN] |
[kN] |
[kN] |
[kg] |
SU.6.20.0311 |
386 |
242 |
315.5 |
312.5 |
360 |
20 |
268 |
20 |
192 |
448 |
140 |
140 |
21 |
SU.6.20.0414 |
486 |
342 |
415.5 |
412.5 |
460 |
24 |
368 |
24 |
248 |
560 |
111 |
169 |
29 |
SU.6.20.0544 |
616 |
472 |
545.5 |
542.5 |
590 |
32 |
498 |
32 |
325 |
740 |
123 |
188 |
37 |
SU.6.20.0644 |
716 |
572 |
645.5 |
642.5 |
690 |
36 |
598 |
36 |
385 |
880 |
131 |
200 |
44 |
SU.6.20.0744 |
816 |
672 |
745.5 |
742.5 |
790 |
40 |
698 |
40 |
445 |
1010 |
138 |
211 |
52 |
SU.6.20.0844 |
916 |
772 |
845.5 |
842.5 |
890 |
40 |
798 |
40 |
510 |
1150 |
145 |
222 |
60 |
SU.6.20.0944 |
1016 |
872 |
945.5 |
942.5 |
990 |
44 |
898 |
44 |
570 |
1280 |
151 |
231 |
67 |
SU.6.20.1094 |
1166 |
1022 |
1095.5 |
1092.5 |
1140 |
48 |
1048 |
48 |
660 |
1490 |
160 |
244 |
77 |
|
VSU200414
VSU200544
VSU200644
VSU200744
VSU200844
VSU200944
VSU201094
|
10-20 0311/0-02002
10-20 0411/0-02012
10-20 0541/0-02022
10-20 0641/0-02032
10-20 0741/0-02042
10-20 0841/0-02052
10-20 0941/0-02062
10-20 1091/0-02072
|
060.20.0414.500.01.1503
060.20.0544.500.01.1503
060.20.0644.500.01.1503
060.20.0744.500.01.1503
060.20.0844.500.01.1503
060.20.0944.500.01.1503
060.20.1094.500.01.1503 |
RKS.060.20.0414
RKS.060.20.0544
RKS.060.20.0644
RKS.060.20.0744
RKS.060.20.0844
RKS.060.20.0944
RKS.060.20.1094 |
|
|
|
|
|
|
|
|
|
|
|
|
