| ROLLER/BALL COMBINATION SLEWING BEARINGS |
|
| |
| External teeth |
Internal teeth |
Without teeth |

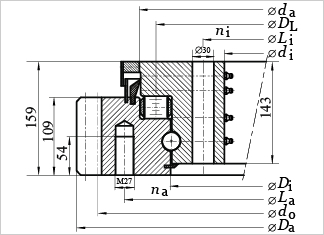

| TE132 |
TE140 |
|
|
|
|
|
|
|
|
| TE.1.32.0000 G3 SERIES |
 |
1. Roller raceway to take up the axial loads.
2. Standard series.
3. Ball raceway provides support for radial loads. All parts are retained together as a unit during fitting.
4. Ball diameters 25 to 70 mm, roller diameters up to 100 mm.
5. Used in application with a dominant axial force and low radial load/tilting moments.
6. Frequently produced as special designs according to customers' requirements.
7. Typical applications: Bulk materials handling, stacker reclaimers, bucket wheel excavators, machine tools. |
 |
JINB
Bearing Number |
Main Dimensions |
Fixing holes |
Gear teeth |
Tooth force |
Basic load ratings |
Mass |
Static |
Dynamic |
Da |
di |
Di |
da |
La |
na |
Li |
ni |
do |
m |
z |
Fz norm |
Fz max |
Cor |
Coa |
Cr |
Ca |
G |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[ - ] |
[mm] |
[ - ] |
[mm] |
[mm] |
[ - ] |
[kN] |
[kN] |
[kN] |
[kN] |
[kN] |
[kN] |
[kg] |
| TE.1.32.3550 G3 |
3773 |
3358 |
3509 |
3597 |
3638 |
76 |
3418 |
76 |
3712 |
16 |
232 |
165 |
294 |
1083 |
32008 |
319 |
4948 |
2028 |
| TE.1.32.3750 G3 |
3981 |
3558 |
3709 |
3797 |
3846 |
80 |
3618 |
80 |
3936 |
16 |
246 |
165 |
294 |
1145 |
33811 |
325 |
5089 |
2186 |
| TE.1.32.4000 G3 |
4221 |
3808 |
3959 |
4047 |
4086 |
84 |
3868 |
84 |
4176 |
16 |
261 |
165 |
294 |
1223 |
36065 |
333 |
5273 |
2278 |
| TE.1.32.4250 G3 |
4477 |
4058 |
4209 |
4297 |
4342 |
90 |
4118 |
90 |
4416 |
16 |
276 |
165 |
294 |
1300 |
38320 |
341 |
5439 |
2455 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
51-32 3550/2-06900
51-32 3750/2-06905
51-32 4000/2-06910
51-32 4250/2-06915
|
121.32.3550.990.41.1502
121.32.3750.990.41.1502
121.32.4000.990.41.1502
121.32.4250.990.41.1502
|
|
|
|
|
|
|
|
