| ROLLER/BALL COMBINATION SLEWING BEARINGS |
|
| |
| External teeth |
Internal teeth |
Without teeth |
| TE132 |
TE140 |
|
|
|
|
|
|
|
|

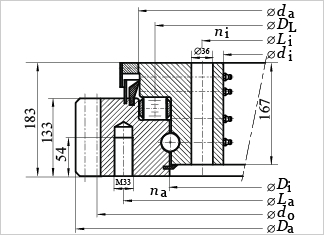

| TE.1.40.0000 G3 SERIES |
 |
1. Roller raceway to take up the axial loads.
2. Standard series.
3. Ball raceway provides support for radial loads. All parts are retained together as a unit during fitting.
4. Ball diameters 25 to 70 mm, roller diameters up to 100 mm.
5. Used in application with a dominant axial force and low radial load/tilting moments.
6. Frequently produced as special designs according to customers' requirements.
7. Typical applications: Bulk materials handling, stacker reclaimers, bucket wheel excavators, machine tools. |
 |
JINB
Bearing Number |
Main Dimensions |
Fixing holes |
Gear teeth |
Tooth force |
Basic load ratings |
Mass |
Static |
Dynamic |
Da |
di |
Di |
da |
La |
na |
Li |
ni |
do |
m |
z |
Fz norm |
Fz max |
Cor |
Coa |
Cr |
Ca |
G |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[ - ] |
[mm] |
[ - ] |
[mm] |
[mm] |
[ - ] |
[kN] |
[kN] |
[kN] |
[kN] |
[kN] |
[kN] |
[kg] |
| TE.1.40.4250 G3 |
4536 |
4026 |
4200 |
4306 |
4362 |
68 |
4098 |
68 |
4480 |
20 |
224 |
253 |
450 |
1403 |
44728 |
442 |
7415 |
3469 |
| TE.1.40.4500 G3 |
4776 |
4276 |
4450 |
4556 |
4612 |
72 |
4348 |
72 |
4720 |
20 |
236 |
253 |
450 |
1486 |
47360 |
451 |
7649 |
3673 |
| TE.1.40.4750 G3 |
5016 |
4526 |
4700 |
4805 |
4852 |
76 |
4598 |
76 |
4960 |
20 |
248 |
253 |
450 |
1570 |
49990 |
460 |
7877 |
3796 |
| TE.1.40.4900 G3 |
5176 |
4676 |
4850 |
4956 |
5012 |
80 |
4748 |
80 |
5120 |
20 |
256 |
253 |
450 |
1620 |
51569 |
466 |
8007 |
4000 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
51-40 4250/2-06920
51-40 4500/2-06925
51-40 4750/2-06930
51-40 4900/2-06935
|
|
|
|
|
|
|
|
