China Standard - Single-row ball slewing bearing: 01 Series

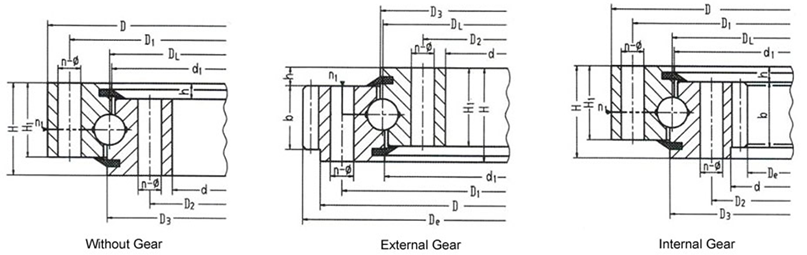

JINB Slewing bearing			Dimension			Mounting Dimension				Structure Dimension					Gear Data			Ext Gear		Int Gear		Tangential Tooth load		Weight
Without Gear	External Gear	Internal Gear	D	d	H	D1	D2	n	Φ	n1	D3	d1	H1	h	b	x·m	m	De	z	De	z	Normalizing	Tempering	Weight
Without Gear	External Gear	Internal Gear	mm	mm	mm	mm	mm	n	Φ	n1	mm	mm	mm	mm	mm	x·m	mm	mm	z	mm	z	104N	104N	kg
010.40.2500	011.40.2500	013.40.2500	2678	2325	144	2610	2391	56	33	8	2501	2498	132	12	120	+0.5	18	2768.4	151	2239	125	27.1	37.5	1400
010.40.2500	012.40.2500	014.40.2500	2678	2325	144	2610	2391	56	33	8	2501	2498	132	12	120	+0.5	20	2776	136	2228	112	30.1	41.8	1400
010.60.2800	011.60.2800	013.60.2800	2978	2625	144	2910	2691	56	33	8	2802	2798	132	12	120	+0.5	18	3074.4	168	2527	141	27.1	37.5	1600
010.60.2800	012.60.2800	014.60.2800	2978	2625	144	2910	2691	56	33	8	2802	2798	132	12	120	+0.5	20	3076	151	2528	127	30.1	41.8
010.40.2800	011.40.2800	013.40.2800	2978	2625	144	2910	2691	56	33	8	2802	2798	132	12	120	+0.5	18	3074.4	168	2527	141	27.1	37.5
010.40.2800	012.40.2800	014.40.2800	2978	2625	144	2910	2691	56	33	8	2802	2798	132	12	120	+0.5	20	3076	151	2528	127	30.1	41.8
010.75.3150	011.75.3150	013.75.3150	3376	2922	174	3286	3014	56	45	8	3512	3147	162	12	150	+0.5	20	3476	171	2828	142	37.7	52.2	2800
010.75.3150	012.75.3150	014.75.3150	3376	2922	174	3286	3014	56	45	8	3512	3147	162	12	150	+0.5	22	3471.6	155	2825	129	41.5	57.4
010.50.3150	011.50.3150	013.50.3150	3376	2922	174	3286	3014	56	45	8	3512	3148	162	12	150	+0.5	20	3476	171	2828	142	37.7	52.2
010.50.3150	012.50.3150	014.50.3150	3376	2922	174	3286	3014	56	45	8	3512	3148	162	12	150	+0.5	22	3471.6	155	2825	129	41.5	57.4
010.75.3550	011.75.3550	013.75.3550	3776	3322	174	3686	3414	56	45	8	3552	3547	162	12	150	+0.5	20	3876	191	3228	162	37.7	52.2	3200
010.75.3550	012.75.3550	014.75.3550	3776	3322	174	3686	3414	56	45	8	3552	3547	162	12	150	+0.5	22	3889.6	174	3221	147	41.5	57.4
010.50.3550	011.50.3550	013.50.3550	3776	3322	174	3686	3414	56	45	8	3552	3548	162	12	150	+0.5	20	3876	191	3228	162	37.7	52.2
010.50.3550	012.50.3550	014.50.3550	3776	3322	174	3686	3414	56	45	8	3552	3548	162	12	150	+0.5	22	3889.6	174	3221	147	41.5	57.4
010.75.4000	011.75.4000	013.75.4000	4226	3772	174	4136	3864	60	45	10	4002	3997	162	12	150	+0.5	22	4329.6	194	3661	167	41.5	57.4	3600
010.75.4000	012.75.4000	014.75.4000	4226	3772	174	4136	3864	60	45	10	4002	3997	162	12	150	+0.5	25	4345	171	3660	147	47.1	65.2
010.50.4000	011.50.4000	013.50.4000	4226	3772	174	4136	3864	60	45	10	4002	3998	162	12	150	+0.5	22	4329.6	194	3661	167	41.5	57.4
010.50.4000	012.50.4000	014.50.4000	4226	3772	174	4136	3864	60	45	10	4002	3998	162	12	150	+0.5	25	4345	171	3660	147	47.1	65.2
010.75.4500	011.75.4500	013.75.4500	4726	4272	174	4636	4364	60	45	10	4502	4497	162	12	150	+0.5	22	4835.6	217	4167	190	47.1	57.4	4000
010.75.4500	012.75.4500	014.75.4500	4726	4272	174	4636	4364	60	45	10	4502	4497	162	12	150	+0.5	25	4845	191	4160	167	41.5	65.2
010.50.4500	011.50.4500	013.50.4500	4726	4272	174	4636	4364	60	45	10	4502	4498	162	12	150	+0.5	22	4835.6	217	4167	190	47.1	57.4
010.50.4500	012.50.4500	014.50.4500	4726	4272	174	4636	4364	60	45	10	4502	4498	162	12	150	+0.5	25	4845	191	4160	167	41.5	65.2
