China Standard - Single-row ball slewing bearing: QS Series

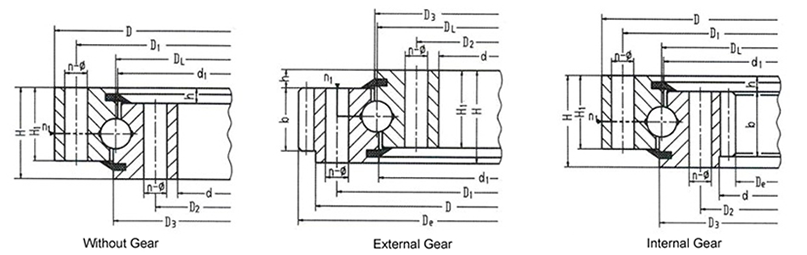

JINB Slewing bearing			Dimension					Mounting Dimension						Structure Dimension			Gear Data		Ext Gear		Int Gear		Weight
Without Gear	External Gear	Internal Gear	Ext Gear		Int Gear		H	D1	D2	n	A	B.C.D		n1	H1	h	b	m	X=-0.5		X=+0.5		Ext	Int
Without Gear	External Gear	Internal Gear	D	d	D	d	mm	mm	mm	n	Φ	Φ	T	n1	mm	h	mm	m	De	z	De	z	kg
QU.1000.25	QW.1000.25	QN.1000.25	1104	892	1108	894	78	1064	936	24	22	M20	36	2	68	10	58	8	1152	143	848	107	182	178
QU.1000.25	QW.1000.25A	QN.1000.25A	1104	892	1108	894	78	1064	936	24	22	M20	36	2	68	10	58	10	1160	115	840	85	185	179
QU.1000.32	QW.1000.32	QN.1000.32	1120	876	1124	880	90	1074	926	24	24	M22	40	2	80	10	70	8	1160	144	832	105	227	230
QU.1000.32	QW.1000.32A	QN.1000.32A	1120	876	1124	880	90	1074	926	24	24	M22	40	2	80	10	70	10	1170	116	830	84	232	227
QU.1120.32	QW.1120.32	QN.1120.32	1240	996	1244	1000	90	1194	1046	28	24	M22	40	4	80	10	70	10	1300	129	940	95	272	263
QU.1120.32	QW.1120.32A	QN.1120.32A	1240	996	1244	1000	90	1194	1046	28	24	M22	40	4	80	10	70	12	1308	108	936	79	275	262
QU.1250.32	QW.1250.32	QN.1250.32	1370	1126	1374	1130	90	1324	1176	32	24	M22	40	4	80	10	70	10	1430	142	1070	108	302	294
QU.1250.32	QW.1250.32A	QN.1250.32A	1370	1126	1374	1130	90	1324	1176	32	24	M22	40	4	80	10	70	12	1440	119	1068	90	309	290
QU.1400.32	QW.1400.32	QN.1400.32	1520	1276	1524	1280	90	1474	1326	36	24	M22	40	4	80	10	70	12	1584	131	1212	102	337	333
QU.1400.32	QW.1400.32A	QN.1400.32A	1520	1276	1524	1280	90	1474	1326	36	24	M22	40	4	80	10	70	14	1596	113	1204	87	347	336
QU.1250.40	QW.1250.40	QN.1250.40	1390	1108	1394	1110	102	1336	1164	32	26	M24	45	4	90	12	80	10	1450	144	1050	106	396	388
QU.1250.40	QW.1250.40A	QN.1250.40A	1390	1108	1394	1110	102	1336	1164	32	26	M24	45	4	90	12	80	12	1452	120	1044	88	392	388
QU.1400.40	QW.1400.40	QN.1400.40	1540	1258	1544	1260	102	1486	1314	36	26	M24	45	4	90	12	80	12	1608	133	1188	100	448	444
QU.1400.40	QW.1400.40A	QN.1400.40A	1540	1258	1544	1260	102	1486	1314	36	26	M24	45	4	90	12	80	14	1610	114	1190	86	443	434
QU.1600.40	QW.1600.40	QN.1600.40	1740	1458	1744	1460	102	1686	1514	40	26	M24	45	4	90	12	80	12	1812	150	1392	117	528	509
QU.1600.40	QW.1600.40A	QN.1600.40A	1740	1458	1744	1460	102	1686	1514	40	26	M24	45	4	90	12	80	14	1820	129	1386	100	534	511
QU.1800.40	QW.1800.40	QN.1800.40	1940	1658	1944	1660	102	1886	1714	44	26	M24	45	4	90	12	80	14	2016	143	1582	114	583	576
QU.1800.40	QW.1800.40A	QN.1800.40A	1940	1658	1944	1660	102	1886	1714	44	26	M24	45	4	90	12	80	16	2032	126	1568	99	607	591
QU.1600.50	QW.1600.50	QN.1600.50	1762	1434	1766	1438	124	1704	1496	40	30	M27	50	4	112	12	100	12	1824	151	1368	115	714	714
QU.1600.50	QW.1600.50A	QN.1600.50A	1762	1434	1766	1438	124	1704	1496	40	30	M27	50	4	112	12	100	14	1834	130	1358	98	727	723
QU.1800.50	QW.1800.50	QN.1800.50	1964	1634	1966	1638	124	1904	1696	44	30	M27	50	4	112	12	100	14	2044	145	1568	113	845	794
QU.1800.50	QW.1800.50A	QN.1800.50A	1964	1634	1966	1638	124	1904	1696	44	30	M27	50	4	112	12	100	16	2048	127	1552	98	843	818
QU.2000.50	QW.2000.50	QN.2000.50	2162	1834	2166	1842	124	2104	1896	48	30	M27	50	6	112	12	100	16	2240	139	1760	111	912	891
QU.2000.50	QW.2000.50A	QN.2000.50A	2162	1834	2166	1842	124	2104	1896	48	30	M27	50	6	112	12	100	18	2250	124	1746	98	927	913
QU.2240.50	QW.2240.50	QN.2240.50	2402	2074	2406	2078	124	2344	2136	54	30	M27	50	6	112	12	100	16	2480	154	1984	125	1020	1044
QU.2240.50	QW.2240.50A	QN.2240.50A	2402	2074	2406	2078	124	2344	2136	54	30	M27	50	6	112	12	100	18	2502	138	1980	111	1078	1041
QU.2500.50	QW.2500.50	QN.2500.50	2662	2334	2666	2342	124	2604	2396	60	30	M27	50	6	112	12	100	18	2754	152	2250	126	1171	1132
QU.2500.50	QW.2500.50A	QN.2500.50A	2662	2334	2666	2342	124	2604	2396	60	30	M27	50	6	112	12	100	18	2760	137	2240	113	1175	1148
QU.2500.60	QW.2500.60	QN.2500.60	2696	2304	2696	2308	150	2626	2374	60	33	M30	56	6	136	14	122	18	2790	154	2214	124	1677	1621
QU.2500.60	QW.2500.60A	QN.2500.60A	2696	2304	2696	2308	150	2626	2374	60	33	M30	56	6	136	14	122	20	2800	139	2200	111	1701	1654
