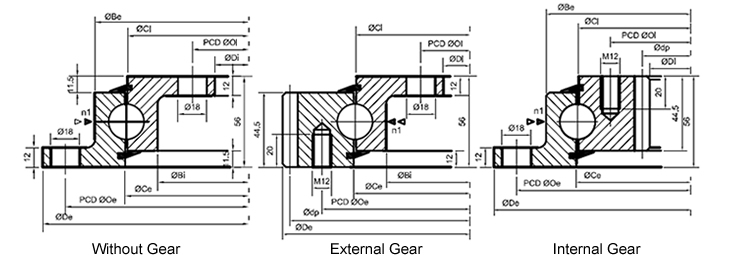

| 061 062 063 Series Slewing ring bearing with flange ring |
 |
Slewing
Bearing
Number |
Raceway Diameter |
Weight |
External Diameter |
Internal Diameter |
Diameter Hole Outer Ring |
Diameter Hole Inner Ring |
Number of Bolt Holes Outer Ring |
Number of Bolt Holes Inner Ring |
Number of Grease Holes |
Diameter |
Diameter |
Diameter Pitch |
Module |
Number of Teeth |
Truncation |
| |
DL |
G |
De |
Di |
Oe |
Oi |
ne |
ni |
n1 |
Ci |
Ce |
dp |
m |
z |
km |
| |
mm |
kg |
mm |
mm |
mm |
mm |
|
|
|
mm |
mm |
mm |
mm |
|
mm |
| Without Gear |
| 063.20.0414.001 |
414 |
23 |
518 |
304 |
490 |
332 |
8 |
12 |
4 |
412.5 |
415.5 |
|
|
|
|
| 063.20.0544.001 |
544 |
33 |
648 |
434 |
620 |
462 |
10 |
14 |
4 |
542.5 |
545.5 |
|
|
|
|
| 063.20.0644.001 |
644 |
39 |
748 |
534 |
720 |
562 |
12 |
16 |
4 |
642.5 |
645.5 |
|
|
|
|
| 063.20.0744.001 |
744 |
45 |
848 |
634 |
820 |
662 |
12 |
16 |
4 |
742.5 |
745.5 |
|
|
|
|
| 063.20.0844.001 |
844 |
51 |
948 |
734 |
920 |
762 |
14 |
18 |
4 |
842.5 |
845.5 |
|
|
|
|
| 063.20.0944.001 |
944 |
56 |
1048 |
834 |
1020 |
862 |
16 |
20 |
4 |
942.5 |
945.5 |
|
|
|
|
| 063.20.1094.001 |
1094 |
65 |
1198 |
984 |
1170 |
1012 |
16 |
20 |
4 |
1092.5 |
1095.5 |
|
|
|
|
| External Gear |
| 061.20.0414.001 |
414 |
31 |
505 |
304 |
455 |
332 |
10 |
12 |
4 |
412.5 |
415.5 |
495 |
5 |
99 |
|
| 061.20.0544.001 |
544 |
43 |
640 |
434 |
585 |
462 |
14 |
14 |
4 |
542.5 |
545.5 |
630 |
6 |
105 |
-1 |
| 061.20.0644.001 |
644 |
51 |
742 |
534 |
685 |
562 |
16 |
16 |
4 |
642.5 |
645.5 |
732 |
6 |
122 |
-1 |
| 061.20.0744.001 |
744 |
59 |
838 |
634 |
785 |
662 |
18 |
16 |
4 |
742.5 |
745.5 |
828 |
6 |
138 |
|
| 061.20.0844.001 |
844 |
67 |
950 |
734 |
885 |
762 |
18 |
18 |
4 |
842.5 |
845.5 |
936 |
8 |
117 |
-1 |
| 061.20.0944.001 |
944 |
75 |
1046 |
834 |
985 |
862 |
20 |
20 |
4 |
942.5 |
945.5 |
1032 |
8 |
129 |
-1 |
| 061.20.1094.001 |
1094 |
85 |
1198 |
984 |
1135 |
1012 |
22 |
20 |
4 |
1092.5 |
1095.5 |
1184 |
8 |
148 |
-1 |
| Internal Gear |
| 062.20.0414.001 |
414 |
30 |
518 |
325 |
490 |
375 |
8 |
12 |
4 |
412.5 |
415.5 |
335 |
5 |
67 |
|
| 062.20.0544.001 |
544 |
40 |
648 |
445 |
620 |
505 |
10 |
16 |
4 |
542.5 |
545.5 |
456 |
6 |
76 |
0.5 |
| 062.20.0644.001 |
644 |
47 |
748 |
546 |
720 |
605 |
12 |
18 |
4 |
642.5 |
645.5 |
558 |
6 |
96 |
|
| 062.20.0744.001 |
744 |
54 |
848 |
649 |
820 |
705 |
12 |
20 |
4 |
742.5 |
745.5 |
660 |
6 |
110 |
0.5 |
| 062.20.0844.001 |
844 |
62 |
948 |
736 |
920 |
805 |
14 |
20 |
4 |
842.5 |
845.5 |
752 |
8 |
94 |
|
| 062.20.0944.001 |
944 |
70 |
1048 |
840 |
1020 |
905 |
16 |
22 |
4 |
942.5 |
945.5 |
856 |
8 |
107 |
|
| 062.20.1094.001 |
1094 |
80 |
1198 |
986 |
1170 |
1055 |
16 |
24 |
4 |
1092.5 |
1095.5 |
1000 |
8 |
125 |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
JINB can produce the following types of slewing ring bearing:
(Without Gear):
063.20.0414.001, 063.20.0544.001, 063.20.0644.001, 063.20.0744.001, 063.20.0844.001, 063.20.0944.001, 063.20.1094.001
(External Gear):
061.20.0414.001, 061.20.0544.001, 061.20.0644.001, 061.20.0744.001, 061.20.0844.001, 061.20.0944.001, 061.20.1094.001
(Internal Gear):
062.20.0414.001, 062.20.0544.001, 062.20.0644.001, 062.20.0744.001, 062.20.0844.001, 062.20.0944.001, 062.20.1094.001
If you need to buy, please contact us, thank you.
