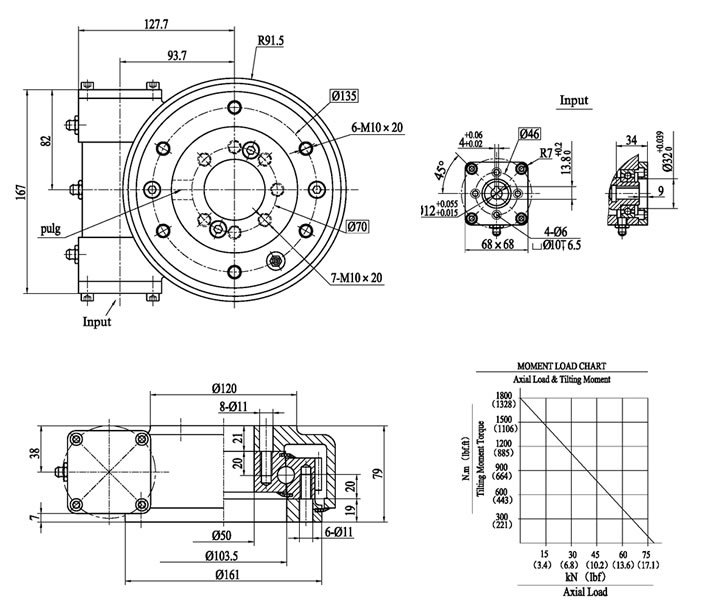

JE5 |
Main Parameters |
Nominal
Torque |
0.6 |
[ kN.m ] |
442.5 |
[ lbf.ft ] |
Tilting Moment
Torque |
3.6 |
[ kN.m ] |
2655 |
[ lbf.ft ] |
Holding
Torque |
3.9 |
[ kN.m ] |
2876.5 |
[ lbf.ft ] |
Static Axial
Reting |
76 |
[ kN ] |
17085.5 |
[ lbf ] |
Static Radial
Rating |
22.6 |
[ kN ] |
5080.6 |
[ lbf ] |
Dynamic Axial
Rating |
13.8 |
[ kN ] |
3102.4 |
[ lbf ] |
Dynamic Radial
Rating |
118 |
[ kN ] |
26527.5 |
[ lbf ] |
Module |
2.5 |
[ - ] |
Worm Shafts |
1 |
[ - ] |
Gear Ratio |
62:1 |
[ - ] |
Traching Precision |
0.2° |
[ - ] |
Weight |
20 |
[ Kg ] |
|
JINB professional slewing drive and slewing ring bearing manufacturer in China. Our products include slewing drives and slewing ring bearings, which are mainly applied in single or dual axis solar tracking systems, construction vehicles, mining machinery, construction machinery, port machinery, modular vehicles and small wind power systems
Slewing drives is the combination of slewing ring with the hourglass worm shaft, which provides more tooth contacy, increased drive torque and smoother rotation. JINB Slewing drive mainly are open housing slewing drive and enclosed slewing drive. Based on these two types, slewing drives can also be classified as single worm and dual worm drive. We will provide the best solution according to the specific usage environment by customer.
|
