BALL SLEWING RING WITH FLANGE RINGS

External teeth Internal teeth Without teeth
VE20 VE32   VI20 VI32   VU20 VU32

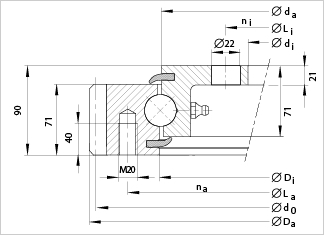

VE.32.0000 G1 SERIES
1. Single-row design with four-point raceway geometry
2. Untoothed rings with flange thicknesses of 12 and 21 mm
3. Ball diameters 20 and 32 mm
4. Available ex stock or with a short delivery time as standard series in 14 sizes
5. Raceway diameters of 314 to 1,094 mm or 955 to 1,455 mm
6. For applications with light loads
7. Enables lightweight structures in spite of large bearing diameters
8. Applications: Handling technology, manlift platforms, turntables
JINB
Bearing Number
Main Dimensions
Fixing holes
Gear teeth
Tooth force
Basic load ratings
Mass
Static
Dynamic
Da
di
Di
da
La
na
Li
ni
do
m
z
Fz norm
Fz max

Cor
Coa

Cr
Ca
G
[mm]
[mm]
[mm]
[mm]
[mm]
[ - ]
[mm]
[ - ]
[mm]
[mm]
[ - ]
[kN]
[kN]
[kN]
[kN]
[kN]
[kN]
[kg]
VE.32.0955 G1 1096 805 955 955 1016 30 845 30 1080 9 120 36 65 1029 2754 411 479 165
VE.32.1055 G1 1198 905 1055 1055 1116 30 945 30 1180 10 118 43 76 1137 3043 427 497 182.5
VE.32.1155 G1 1298 1005 1155 1155 1216 36 1045 36 1280 10 128 43 76 1245 3331 442 514 199.5
VE.32.1255 G1 1398 1105 1255 1255 1316 42 1145 42 1380 10 138 43 76 1353 3619 456 531 215.5
VE.32.1355 G1 1498 1205 1355 1355 1416 42 1245 42 1480 10 148 43 76 1460 3908 469 546 234
VE.32.1455 G1 1598 1305 1455 1455 1516 48 1345 48 1580 10 158 43 76 1568 4196 482 561 250
91-32 0955/1-06115
91-32 1055/1-06125
91-32 1155/1-06135
91-32 1255/1-06145
91-32 1355/1-06155
91-32 1455/1-06165
