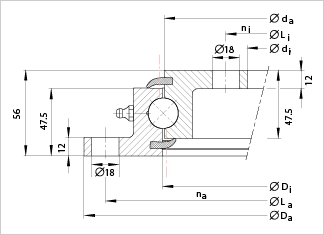

| BALL SLEWING RING WITH FLANGE RINGS |
|
| |
|
| VU.20.0000 SERIES |
 |
1. Single-row design with four-point raceway geometry
2. Untoothed rings with flange thicknesses of 12 and 21 mm
3. Ball diameters 20 and 32 mm
4. Available ex stock or with a short delivery time as standard series in 14 sizes
5. Raceway diameters of 314 to 1,094 mm or 955 to 1,455 mm
6. For applications with light loads
7. Enables lightweight structures in spite of large bearing diameters
8. Applications: Handling technology, manlift platforms, turntables |
 |
JINB
Bearing Number |
Main Dimensions |
Fixing holes |
Basic load ratings |
Mass |
Static |
Dynamic |
Da |
di |
Di |
da |
La |
na |
Li |
ni |
Cor |
Coa |
Cr |
Ca |
G |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[ - ] |
[mm] |
[ - ] |
[kN] |
[kN] |
[kN] |
[kN] |
[kg] |
| VU.20.0311 |
418 |
204 |
315.5 |
312.5 |
390 |
8 |
232 |
12 |
89 |
208 |
140 |
140 |
19 |
| VU.20.0414 |
518 |
304 |
415.5 |
412.5 |
490 |
8 |
332 |
12 |
110 |
295 |
111 |
169 |
23.5 |
| VU.20.0544 |
648 |
434 |
545.5 |
542.5 |
620 |
10 |
462 |
14 |
145 |
385 |
123 |
188 |
31 |
| VU.20.0644 |
748 |
534 |
645.5 |
642.5 |
720 |
12 |
562 |
16 |
171 |
455 |
131 |
200 |
36.5 |
| VU.20.0744 |
848 |
634 |
745.5 |
742.5 |
820 |
12 |
662 |
16 |
198 |
530 |
138 |
211 |
42.5 |
| VU.20.0844 |
948 |
734 |
845.5 |
842.5 |
920 |
14 |
762 |
18 |
224 |
600 |
145 |
222 |
48 |
| VU.20.0944 |
1048 |
834 |
945.5 |
942.5 |
1020 |
16 |
862 |
20 |
250 |
670 |
151 |
231 |
54 |
| VU.20.1094 |
1198 |
984 |
1095.5 |
1092.5 |
1170 |
16 |
1012 |
20 |
290 |
770 |
160 |
244 |
62.5 |
|
VLU200414
VLU200544
VLU200644
VLU200744
VLU200844
VLU200944
VLU201094
|
90-20 0311/0-07002
90-20 0411/0-07012
90-20 0541/0-07022
90-20 0641/0-07032
90-20 0741/0-07042
90-20 0841/0-07052
90-20 0941/0-07062
90-20 1091/0-07072
|
RKS.23.0411
RKS.23.0541
RKS.23.0641
RKS.23.0741
RKS.23.0841
RKS.23.0941
RKS.23.1091 |
|
|
|
|
|
|
|
|
|
|
|
