TRIPLE ROW ROLLER SLEWING BEARINGS

External teeth
Internal teeth

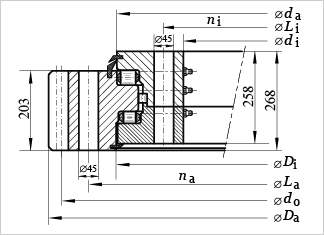

RE.9.50.0000 G3 SERIES
1. Triple-Row Roller Slewing Rings.
2. Roller diameters 10 to 100 mm
3. Plastic, steel or brass cage segments according to loads (can also be supplied with closed cage)
4. Designed to provide the combination of the highest capacity in the smallest configuration
5. Greater static and dynamic load capacity, higher rigidity and constant friction torque compared with all other Slewing 6. Ring designs (with the same raceway diameter)
7. High requirements on the rigidity and precision of the mounting structure
8. Standard series with outside diameters from 1,462 to 5,179 mm
9. Mostly supplied as customer specific designs
JINB
Bearing Number
Main Dimensions
Fixing holes
Gear teeth
Tooth force
Basic load ratings
Mass
Static
Dynamic
Da
di
Di
da
La
na
Li
ni
do
m
z
Fz norm
Fz max

Cor
Coa

Cr
Ca
G
[mm]
[mm]
[mm]
[mm]
[mm]
[ - ]
[mm]
[ - ]
[mm]
[mm]
[ - ]
[kN]
[kN]
[kN]
[kN]
[kN]
[kN]
[kg]
RE.9.50.3150 G3 3571 2885 3196 3210 3350 48 2975 48 3504 24 146 420 760 3894 28222 1770 7443 5298
RE.9.50.3550 G3 3955 3285 3596 3610 3750 54 3375 54 3888 24 162 420 760 4402 31810 1887 7912 5830
RE.9.50.4000 G3 4411 3735 4046 4060 4200 60 3825 60 4344 24 181 420 760 4974 35846 2011 8426 6578
RE.9.50.4500 G3 4915 4235 4546 4560 4700 68 4325 68 4848 24 202 420 760 5609 40330 2144 9036 7456
RE.9.50.4750 G3 5179 4485 4796 4810 4950 75 4575 76 5112 24 213 420 760 5927 42573 2209 9291 7870
31-50 3150/2-07520
31-50 3550/2-07530
31-50 4000/2-07540
31-50 4500/2-07550
31-50 4750/2-07555
 191.50.3150.990.41.1502
191.50.3550.990.41.1502
191.50.4000.990.41.1502
191.50.4500.990.41.1502
