TRIPLE ROW ROLLER SLEWING BEARINGS

External teeth
Internal teeth

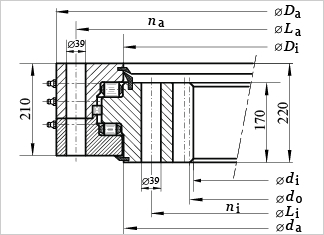

RI.9.40.0000 G3 SERIES
1. Triple-Row Roller Slewing Rings.
2. Roller diameters 10 to 100 mm
3. Plastic, steel or brass cage segments according to loads (can also be supplied with closed cage)
4. Designed to provide the combination of the highest capacity in the smallest configuration
5. Greater static and dynamic load capacity, higher rigidity and constant friction torque compared with all other Slewing 6. Ring designs (with the same raceway diameter)
7. High requirements on the rigidity and precision of the mounting structure
8. Standard series with outside diameters from 1,462 to 5,179 mm
9. Mostly supplied as customer specific designs
JINB
Bearing Number
Main Dimensions
Fixing holes
Gear teeth
Tooth force
Basic load ratings
Mass
Static
Dynamic
Da
di
Di
da
La
na
Li
ni
do
m
z
Fz norm
Fz max

Cor
Coa

Cr
Ca
G
[mm]
[mm]
[mm]
[mm]
[mm]
[ - ]
[mm]
[ - ]
[mm]
[mm]
[ - ]
[kN]
[kN]
[kN]
[kN]
[kN]
[kN]
[kg]
RI.9.40.2800 G3 3038 2460 2750 2763 2960 48 2635 48 2480 20 124 314 577 2452 21706 1188 5133 3213
RI.9.40.3150 G3 3388 2794 3100 3113 3310 56 2985 56 2816 22 128 357 658 2751 24416 1262 5158 3683
RI.9.40.3550 G3 3788 3190 3500 3513 3710 66 3385 66 3212 22 146 357 658 3093 27513 1443 5806 4171
RI.9.40.4000 G3 4238 3624 3950 3963 4160 72 3835 72 3648 24 152 398 740 3478 30872 1478 6194 4810
RI.9.40.4500 G3 4738 4128 4450 4463 4660 84 4335 84 4152 24 173 398 740 3905 34729 1519 6629 5367
32-40 2800/2-07470
32-40 3150/2-07480
32-40 3550/2-07490
32-40 4000/2-07500
32-40 4500/2-07510
 192.40.2800.990.41.1502
192.40.3150.990.41.1502
192.40.3550.990.41.1502
192.40.4000.990.41.1502
192.40.4500.990.41.1502
