TRIPLE ROW ROLLER SLEWING BEARINGS

External teeth					Internal teeth
RE920	RE925	RE932	RE940	RE950	RI920	RI925	RI932	RI940	RI950

RI.9.32.0000 G3 SERIES

1. Triple-Row Roller Slewing Rings.
2. Roller diameters 10 to 100 mm
3. Plastic, steel or brass cage segments according to loads (can also be supplied with closed cage)
4. Designed to provide the combination of the highest capacity in the smallest configuration
5. Greater static and dynamic load capacity, higher rigidity and constant friction torque compared with all other Slewing 6. Ring designs (with the same raceway diameter)
7. High requirements on the rigidity and precision of the mounting structure
8. Standard series with outside diameters from 1,462 to 5,179 mm
9. Mostly supplied as customer specific designs

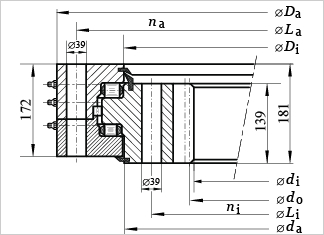

JINB Bearing Number	Main Dimensions				Fixing holes				Gear teeth			Tooth force		Basic load ratings				Mass
	Main Dimensions				Fixing holes				Gear teeth			Tooth force		Static		Dynamic		Mass
	Da	di	Di	da	La	na	Li	ni	do	m	z	Fz norm	Fz max	Cor	Coa	Cr	Ca	G
	[mm]	[mm]	[mm]	[mm]	[mm]	[ - ]	[mm]	[ - ]	[mm]	[mm]	[ - ]	[kN]	[kN]	[kN]	[kN]	[kN]	[kN]	[kg]
RI.9.32.2240 G3	2458	1908	2199	2210	2380	40	2085	40	1926	18	107	240	445	1966	15505	1057	3286	2010
RI.9.32.2500 G3	2718	2178	2459	2470	2640	44	2345	44	2196	18	122	240	445	2189	17302	1119	3478	2210
RI.9.32.2800 G3	3018	2460	2759	2770	2940	48	2645	48	2480	20	124	278	508	2445	19376	1187	3697	2542
RI.9.32.3150 G3	3368	2820	3109	3120	3290	56	2995	56	2840	20	142	278	508	2744	21795	1260	3945	2807
RI.9.32.3550 G3	3768	3190	3509	3520	3690	66	3395	66	3212	22	146	305	559	3089	24560	1341	4218	3302
RI.9.32.4000 G3	4218	3652	3959	3970	4140	72	3845	72	3674	22	167	305	559	3471	27670	1427	4495	2664

32-32 2240/2-07360
32-32 2500/2-07370
32-32 2800/2-07380
32-32 3150/2-07390
32-32 3550/2-07400
32-32 4000/2-07410

192.32.2240.990.41.1502
192.32.2500.990.41.1502
192.32.2800.990.41.1502
192.32.3150.990.41.1502
192.32.3550.990.41.1502
192.32.4000.990.41.1502
