| TRIPLE ROW ROLLER SLEWING BEARINGS |
|
| |
External teeth |
Internal teeth |
|
|
|
|
|
|
|
|
|
|
|

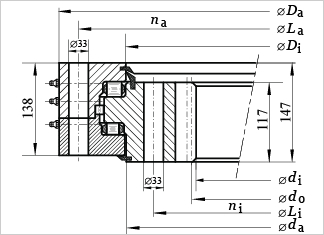

| RI.9.25.0000 G3 SERIES |
 |
1. Triple-Row Roller Slewing Rings.
2. Roller diameters 10 to 100 mm
3. Plastic, steel or brass cage segments according to loads (can also be supplied with closed cage)
4. Designed to provide the combination of the highest capacity in the smallest configuration
5. Greater static and dynamic load capacity, higher rigidity and constant friction torque compared with all other Slewing 6. Ring designs (with the same raceway diameter)
7. High requirements on the rigidity and precision of the mounting structure
8. Standard series with outside diameters from 1,462 to 5,179 mm
9. Mostly supplied as customer specific designs |
 |
JINB
Bearing Number |
Main Dimensions |
Fixing holes |
Gear teeth |
Tooth force |
Basic load ratings |
Mass |
Static |
Dynamic |
Da |
di |
Di |
da |
La |
na |
Li |
ni |
do |
m |
z |
Fz norm |
Fz max |
Cor |
Coa |
Cr |
Ca |
G |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[ - ] |
[mm] |
[ - ] |
[mm] |
[mm] |
[ - ] |
[kN] |
[kN] |
[kN] |
[kN] |
[kN] |
[kN] |
[kg] |
| RI.9.25.1800 G3 |
1981 |
1520 |
1763 |
1774 |
1915 |
36 |
1675 |
36 |
1536 |
16 |
96 |
185 |
342 |
1424 |
10333 |
751 |
2109 |
1101 |
| RI.9.25.2000 G3 |
2181 |
1728 |
1963 |
1974 |
2115 |
44 |
1875 |
44 |
1744 |
16 |
109 |
185 |
342 |
1577 |
11480 |
793 |
2234 |
1202 |
| RI.9.25.2240 G3 |
2421 |
1944 |
2203 |
2214 |
2355 |
48 |
2115 |
48 |
1962 |
18 |
109 |
217 |
394 |
1763 |
12856 |
832 |
2371 |
1406 |
| RI.9.25.2500 G3 |
2681 |
2214 |
2463 |
2474 |
2615 |
54 |
2375 |
54 |
2232 |
18 |
124 |
217 |
394 |
1963 |
14346 |
889 |
2510 |
1545 |
| RI.9.25.2800 G3 |
2981 |
2500 |
2763 |
2774 |
2915 |
60 |
2675 |
60 |
2520 |
20 |
126 |
248 |
449 |
2194 |
16067 |
943 |
2666 |
1767 |
|
32-25 1800/2-06850
32-25 2000/2-06860
32-25 2240/2-06870
32-25 2500/2-06880
32-25 2800/2-06890
|
192.25.1800.990.41.1502
192.25.2000.990.41.1502
192.25.2240.990.41.1502
192.25.2500.990.41.1502
192.25.2800.990.41.1502
|
|
|
|
|
|
|
|
