TRIPLE ROW ROLLER SLEWING BEARINGS

External teeth
Internal teeth

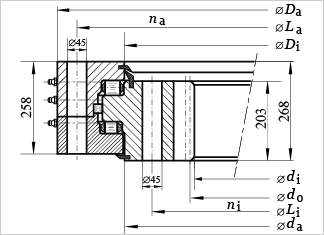

RI.9.50.0000 G3 SERIES
1. Triple-Row Roller Slewing Rings.
2. Roller diameters 10 to 100 mm
3. Plastic, steel or brass cage segments according to loads (can also be supplied with closed cage)
4. Designed to provide the combination of the highest capacity in the smallest configuration
5. Greater static and dynamic load capacity, higher rigidity and constant friction torque compared with all other Slewing 6. Ring designs (with the same raceway diameter)
7. High requirements on the rigidity and precision of the mounting structure
8. Standard series with outside diameters from 1,462 to 5,179 mm
9. Mostly supplied as customer specific designs
JINB
Bearing Number
Main Dimensions
Fixing holes
Gear teeth
Tooth force
Basic load ratings
Mass
Static
Dynamic
Da
di
Di
da
La
na
Li
ni
do
m
z
Fz norm
Fz max

Cor
Coa

Cr
Ca
G
[mm]
[mm]
[mm]
[mm]
[mm]
[ - ]
[mm]
[ - ]
[mm]
[mm]
[ - ]
[kN]
[kN]
[kN]
[kN]
[kN]
[kN]
[kg]
RI.9.50.3150 G3 3415 2736 3090 3104 3325 48 2950 48 2760 24 115 440 820 4110 28285 1820 7449 5128
RI.9.50.3550 G3 3815 3120 3490 3504 3725 54 3350 54 3144 24 131 440 820 4618 31872 1935 7919 5916
RI.9.50.4000 G3 4265 3576 3940 3954 4175 60 3800 60 3600 24 150 440 820 5190 35908 2059 8432 6623
RI.9.50.4500 G3 4765 4080 4440 4454 4675 68 4300 68 4104 24 171 440 820 5825 40393 2189 9051 7427
RI.9.50.4750 G3 5015 4320 4690 4704 4925 76 4550 76 4344 24 181 440 820 6143 42635 2250 9297 7840
32-50 3150/2-07560
32-50 3550/2-07570
32-50 4000/2-07580
32-50 4500/2-07590
32-50 4750/2-07595
 192.50.3150.990.41.1502
192.50.3550.990.41.1502
192.50.4000.990.41.1502
192.50.4500.990.41.1502
